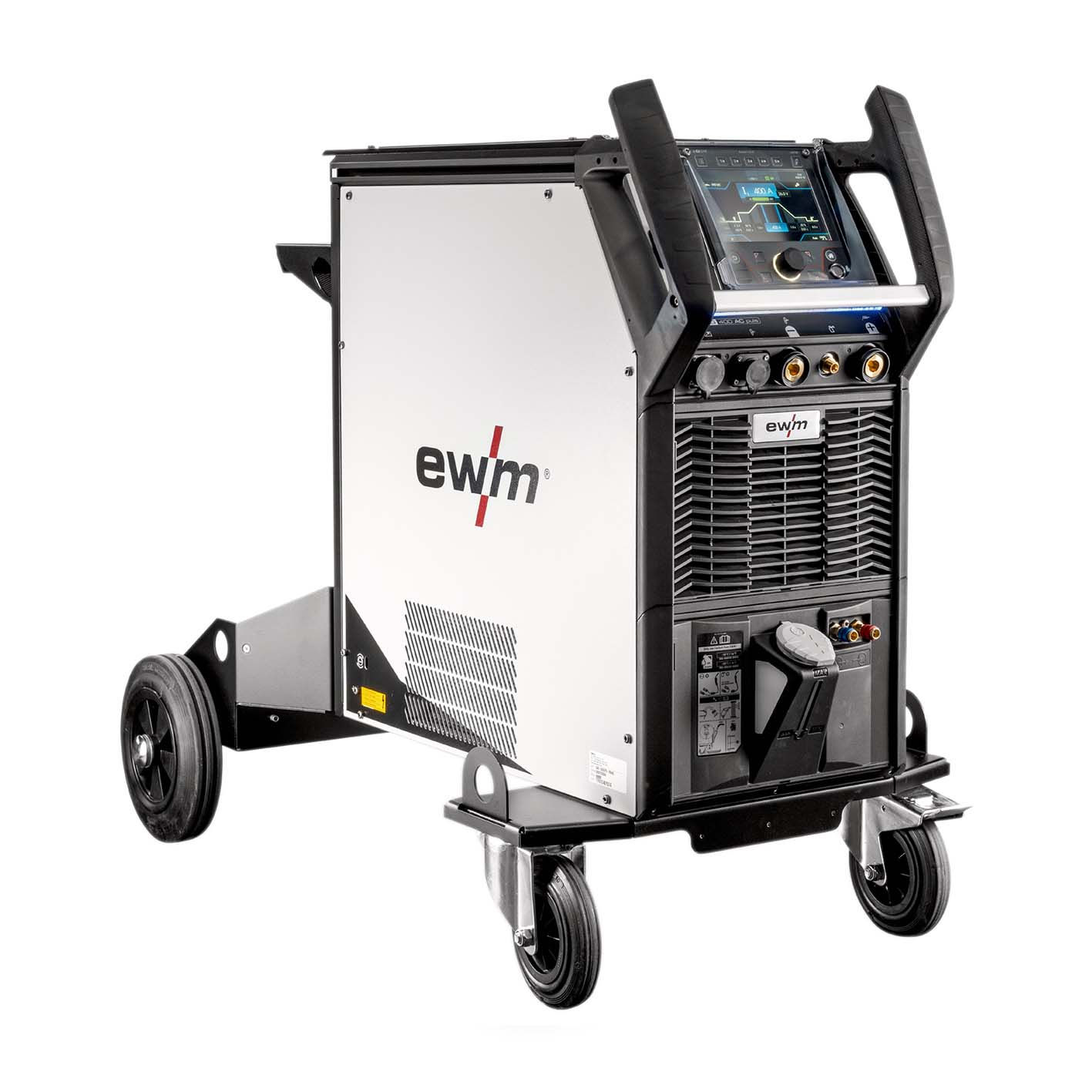

EWM Tetrix XQ 400 puls DC W welding machine creates your all-new welding experience equipped with the best controls for your best welding.



EWM know that the best welding starts with the right settings, with their new innovative control panel you have every option available for individualised work at the highest level.  From comfort 3.0 to the new expert 3.0, you need it.  Tetrix XQ 400 has expert 3.0 control with 7" high-resolution graphic display with plain text display for selecting all parameters and control customisation to provide you with ease of use.



TIG DC inverter welding machine of the latest generation, with TIG DC and TIG pulse including activArc® and spotArc®.  Not only a quality welding machine but energy-saving as well thanks to its high efficiency and standby function.



Key Features:

  • Connection capability for remote control and function torch
  • Simple, tool-free reversal of the welding polarity
  • Earth fault monitoring (PE protection)
  • Splash-proof as per IP23
  • flexFit casing system: Many accessory parts and options can be fixed to the welding machine using conventional slot nuts
  • LED information bar: Indicates the current operating status
  • Optional network connectivity with EWM Xnet software via LAN or WiFi gateway
  • PC interface for PC300 XQ software
  • The high 1500 W cooling capacity, high-performance centrifugal pump and 8-litre coolant tank make for excellent torch cooling, resulting in cost savings on consumables
  • Temperature and speed-controlled cooling fan - reduced contamination and fewer noise emissions as the fan only runs when needed.



Not the right EWM welder? Don't worry EWM have a wide range of high-quality welders for your needs, see the full range!

EWM Tetrix XQ 400 puls DC W TIG Welder

SKU: TR29-090-005671-00002
£8,753.50Price
Excluding VAT
  • Version Tetrix XQ 400 puls DC W EX 5P
      OW Expert 3.0
    Setting range for welding current 3 A - 400 A
    Duty cycle 40°C 400A / 80%
      370A / 100%
    Open circuit voltage 82V
    Mains voltage 3 x 400V
    Tolerances -25% up to +20%
    Mains Frequency 50 Hz / 60 Hz
    Recommended generator power 17.8 kVA
    Cooling capacity at 1 l/min 1000 W
    Pump Pressure  3.5 bar
    Tank Capacity 8 l
    Protection Classification IP23
    EMC Class A
    Dimensions (LxBxH) 1150mm x 678mm x 972mm
      45.3 inch x 26.7 inch x 38.3 inch
    Weight 126.5Kg
      278.9Ibs
    Standards  IEC 60974-1, -2, -3 and -10 CL.A



    • Language: CZ / DE / EN / ES / FI / FR / HU / IT / NL / PL / PT / RO / RU / SE / TR
    • Now anything’s possible
    • 7” high-resolution graphic display with plain text display (no touchscreen)
    • Five favourites buttons
    • X button for individual access authorisation
    • USB interface for software updates and JOB copying
    • Click wheel for convenient operation with welder’s gloves
    • Reliable push-button operation
    • Customisable to your individual requirements
    • Direct access to all main functions
    • All parameters at a glance
    • Colour screen and graphical support for setting parameters
    • Graphic adjustment of all parameters in the flow diagram
    • Visual support for parameter setting
    • All key functions can be accessed without submenus directly from the home screen
    • Easy-to-understand illustrated instructions and quick-access menus
    Welding process DC TIG
      TIG AC
      MMA DC
      MMA AC
      E-Hand cel

    Operating

    modes

    Non-latched
      Latched
      spotArc
      spotmatic
    AC functions AC tungsten balling
      AC sine
      AC trapezoidal
      AC rectangle


    AC advanced waveform setting

    (positive/negative half-wave can be

    set separately)

      AC balance
      AC amplitude balance
      AC frequency: 30 Hz to 300 Hz
      Automatic AC frequency


    AC commutation optimisation for

    highest arc stability

    Ignition options HF
      Liftarc
    Pulse type

    Average value pulsing (0.2 Hz–20 kHz)

    incl. waveform setting (soft, middle, hard)

      Thermal pulsing (time pulsing)


    Automatic pulsing incl. waveform setting

    (soft, middle, hard)

      AC special
    MMA functions Hotstart
      Arcforce
      Antistick
      Average value pulse welding
    Functions activArc
      Automatic gas post-flow function
      Cable resistance alignment
    Job functions

    Number of freely definable Jobs 100 TIG,

    8 MMA, 8 MMA Cel



    JOB manager (JOBs can be copied

    and reset individually, save and load on USB)

    Note AC functions only available with AC/DC devices!
